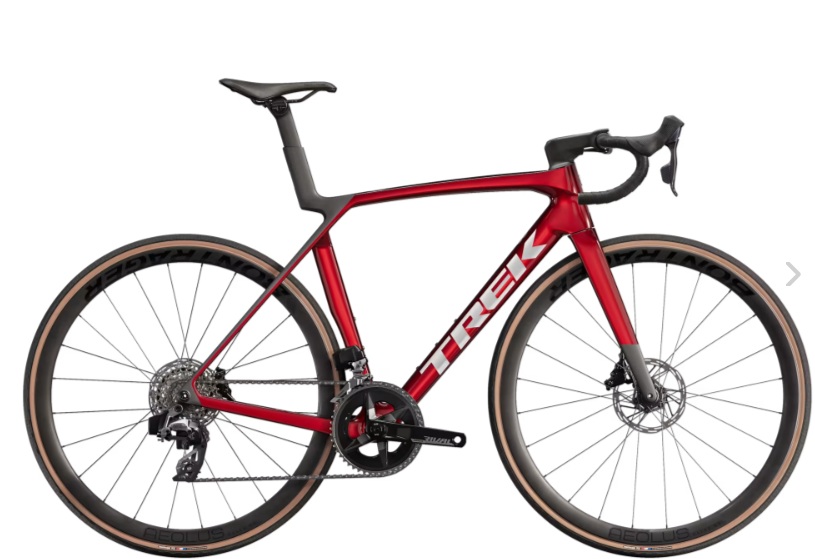

TREK Madone SL 6 AXS Gen 8

The Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you quick on the sprints yet in control on fast descents. For clean shifts that are fully customisable, it's decked out with SRAM's Rival AXS electronic group set with a power meter, topped off with carbon wheels for extra lightweight performance.

Frame

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle

Fork

Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle

Weight

ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery

SRAM AXS battery pack (with charger)

Shifter

SRAM Rival eTap AXS, 12-speed

Front derailleur

SRAM Rival D1 AXS, braze-on

Rear derailleur

SRAM Rival AXS

*Crank

Size: XS, S

SRAM Rival AXS w/ power meter, 48/35, DUB, 165 mm length
Size: M

SRAM Rival AXS w/ power meter, 48/35, DUB, 170 mm length
Size: ML, L

SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5 mm length
Size: XL

SRAM Rival AXS Power Meter, 48/35, DUB, 175 mm length

Bottom bracket

SRAM DUB, T47 threaded, internal bearing

Cassette

SRAM XG-1250, 10-36, 12-speed

Chain

SRAM Rival, 12-speed

Max. chainring size

Wheel front

Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle

Wheel rear

Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Tyre

Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

32 mm (as measured, see manual for details)

*Saddle

Size: XS, SBontrager Aeolus Comp, steel rails, 155 mm width
Size: M, ML, L, XLBontrager Aeolus Comp, steel rails, 145 mm width

*Seatpost

Size: XS, S, M, XLMadone aero carbon seat post, 0 mm offset, short length
Size: ML, LMadone aero carbon seat post, 0 mm offset, long length

*Handlebar

Size: XS

Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: S, M

Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: ML, L

Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: XL

Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width

Handlebar tape

Trek EcoTack, black

*Stem

Size: XSTrek RCS Pro, -7-degree, 80 mm length
Size: S, MTrek RCS Pro, -7-degree, 90 mm length
Size: ML, LTrek RCS Pro, -7-degree, 100 mm length
Size: XLTrek RCS Pro, -7-degree, 110 mm length

Brake rotor

SRAM Paceline, rounded, CentreLock, 160 mm

Rotor size

Max brake rotor sizes: 180 mm front, 160 mm rear
